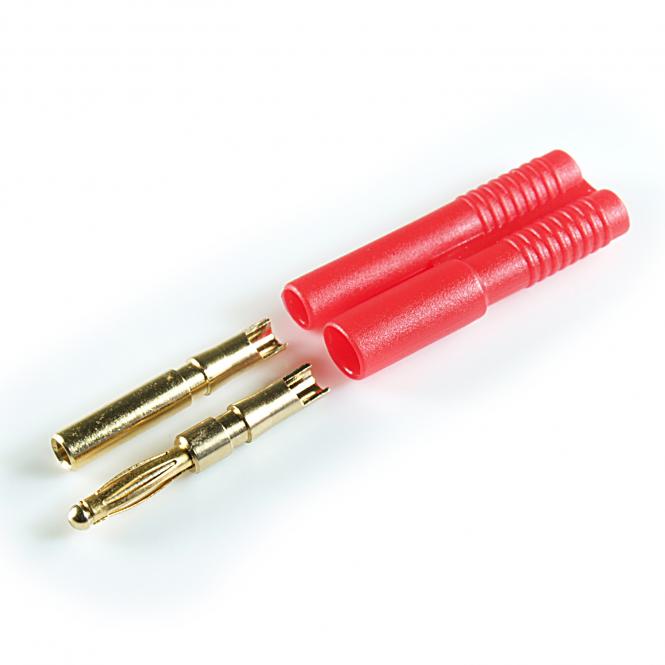

Gold Connector CT-2mm 10A with Casing
Product 1 of 6
Next product
Gold plated 0.15µ contact connectors.
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.62 mOhm
Ampacity 10 A (continuous), 20 A (2 min.), 30 A (impulse)
Length (casing) 25 mm
Diameter 2.9mm
Total weight 1.3 g
Wire cross section max. 1.5 sqmm (AWG 16)
Set includes 1 male, 1 female connector, 1 casing
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.62 mOhm
Ampacity 10 A (continuous), 20 A (2 min.), 30 A (impulse)
Length (casing) 25 mm
Diameter 2.9mm
Total weight 1.3 g
Wire cross section max. 1.5 sqmm (AWG 16)
Set includes 1 male, 1 female connector, 1 casing
