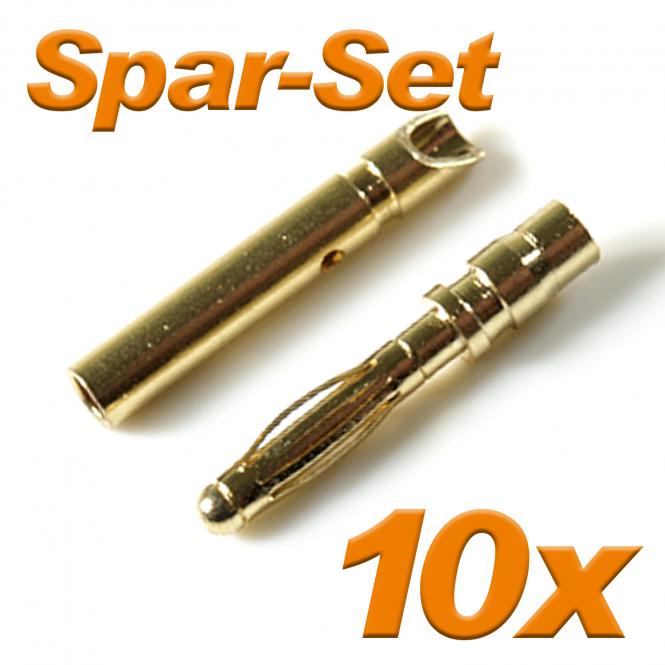

Gold Connector G2L 2mm 10A 10 sets
Gold plated 0.15µ contact connectors.
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.62 mOhm
Ampacity 10 A (continuous), 20 A (2 min.), 30 A (impulse)
Length plug 17 mm, socket 17 mm
Diameter socket outer 2.75 mm
Total weight 1.3 g
Wire cross section max. 1.5 sqmm (AWG 16)
Set includes 10 plugs + 10 socket connectors
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.62 mOhm
Ampacity 10 A (continuous), 20 A (2 min.), 30 A (impulse)
Length plug 17 mm, socket 17 mm
Diameter socket outer 2.75 mm
Total weight 1.3 g
Wire cross section max. 1.5 sqmm (AWG 16)
Set includes 10 plugs + 10 socket connectors
