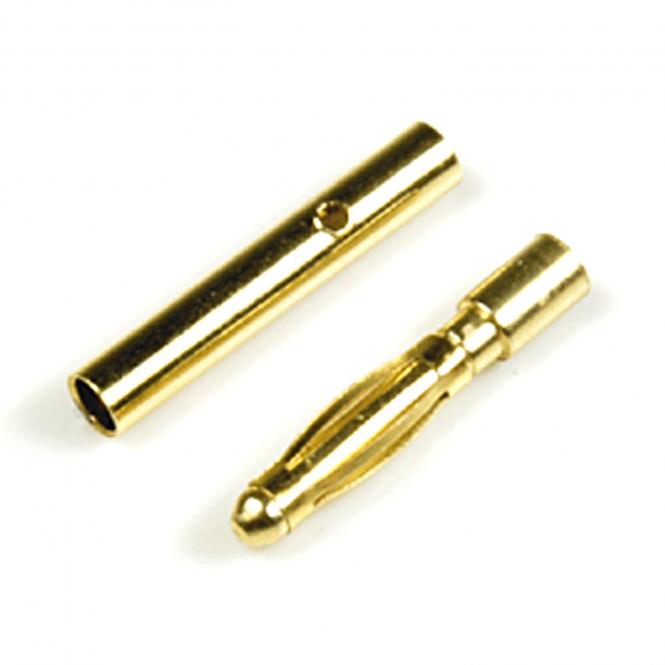

Gold Connector G2s 2mm 10A

Gold plated 0.15µ contact connectors.
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.62 mOhm
Ampacity 10 A (continuous), 20 A (2 min.), 30 A (impulse)
Length plug 14.6 mm, socket 14.6 mm
Diameter socket outer 2.5 mm
Total weight 1 g
Wire cross section max. 1.5 sqmm (AWG 16)

Set includes 1 plug + 1 socket connector
