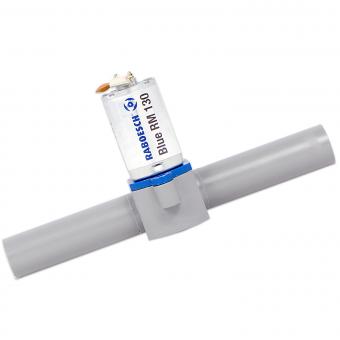

Bow Thruster MINI with electric motor, 10/12mm

Product 12 of 19
Zoom
Bow Thruster MINI with electric motor, 10/12mm

Bow Thruster MINI with electric motor, 10/12mm

Select Item #: 4108-20
Only some items on stock - order quickly!
Probably the smallest thruster in the world!

This mini bow thrusters is equipped with an electric motor type 100. The propulsion is provided by a 4-bladed paddle wheel sucking in water on one side and expelling it through the jet nozzles very effectively at high pressure on the other. This design is very robust and very stable and maintenance required is very little to none. The pump housing and the jet nozzles are made of ABS. The motor is sealed with a G-ring and an O-ring thereby ensuring a good seal so that the thruster can be installed vertically as well as horizontally. The motor with the pump housing cover can be removed easily. The cover has an O-ring that ensures water-tight sealing of the entire assembly.

Technical Specifications:
• Electric Motor
Nominal Current 6V
Operational Current 3-12V
Idle Revs +/- 9,000 RPM
Idle Power Consumption 0.05A/0.3A (3V/12V)


• Thruster
Diameter inner 10 / outer 12 mm
Length min. 21 mm (housing)
Max. width 95 mm

Total weight (motor+thruster) 30 g
