Magnetic Switch Combo: 6V/16A + Rx Switch Module

Zoom
Magnetic Switch Combo: 6V/16A + Rx Switch Module

Magnetic Switch Combo: 6V/16A + Rx Switch Module

Select Item #: 1566-RX
Only some items on stock - order quickly!

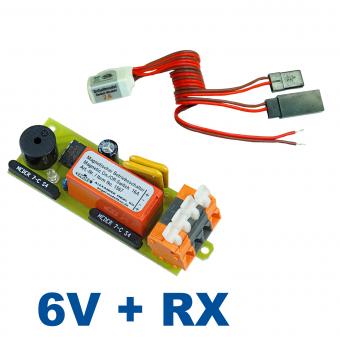

Magnetic Switch Combination includes
• magnetic switch 6V/16A No. 1566 for main drive battery
• switch module 2A Rx No. 1563 for receiver battery

Magnetic Switch 6V/16A
This switch is operated by a magnet. With this 16 Amp version the main power supply (receiver with BEC and main drive battery) can be switched on and off just by moving the magnet from front to back (or vice versa) of a certain area of the hull without having to open the model.

As soon as the switch has been sucessfully acitvated a "peep" sound is heard. Furthermore, the incorporated battery monitor will alert the user in case of low battery capacity (
Required but not included is a magnet such as item-no. 1569.

Technical Data:
• on/off switch for receiver (BEC) AND main drive battery
• dimensions: 71 x 24 x 29 mm (2.8x0.94x1.14")
• weight: approx. 32.5 g
• operating current: 6 - 7.2 V
• current consumption: 7 mA at 6 V (for LED)
• maximum load: 16 Amp (constant) or 30 Amp for 4 sec.
• connection lead compatible with Futaba, JR/Graupner, HiTech, MPX-Uni

Switch Module Rx 2A
This module serves as additional switch for magnetic switches 1566 (6V/16A) and 1567 (12V/16A) and allows switching of receiver battery.
Connected to the magnetic switch, both batteries, main drive and receiver battery can be switched on and off simply by sliding an appropriate magnet (e. g.  no. 1569) along the reed contacts of the magnetic switch.

Connection
Connection is quite simple. Just connect the two tin-soldered wire lead ends to + (red) and - (black) to the outgoing ports of the magnetic switch. Plug socket lead into receiver battery (e. g. no. 5528) and plug the other lead into the receiver itself. Done.

Technical Specifications:
Type: Relais Switch
Dimensions approx.: 24 x 10 x 9 mm
Weight approx.: 5 g
Switching Voltage: 6 - 12V
Operation Voltage: 4,8 - 6 V
Maximum Load: 2 A permanent, 3 A for 2 sec.

dimensions 71 x 24 x 29 mm
weight 32 g
