4-Channel Electronic Switch Module MINI

Product 1 of 13
Zoom

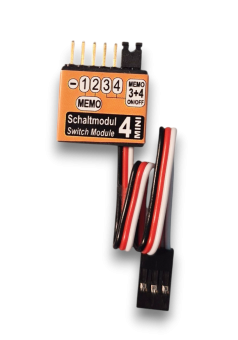

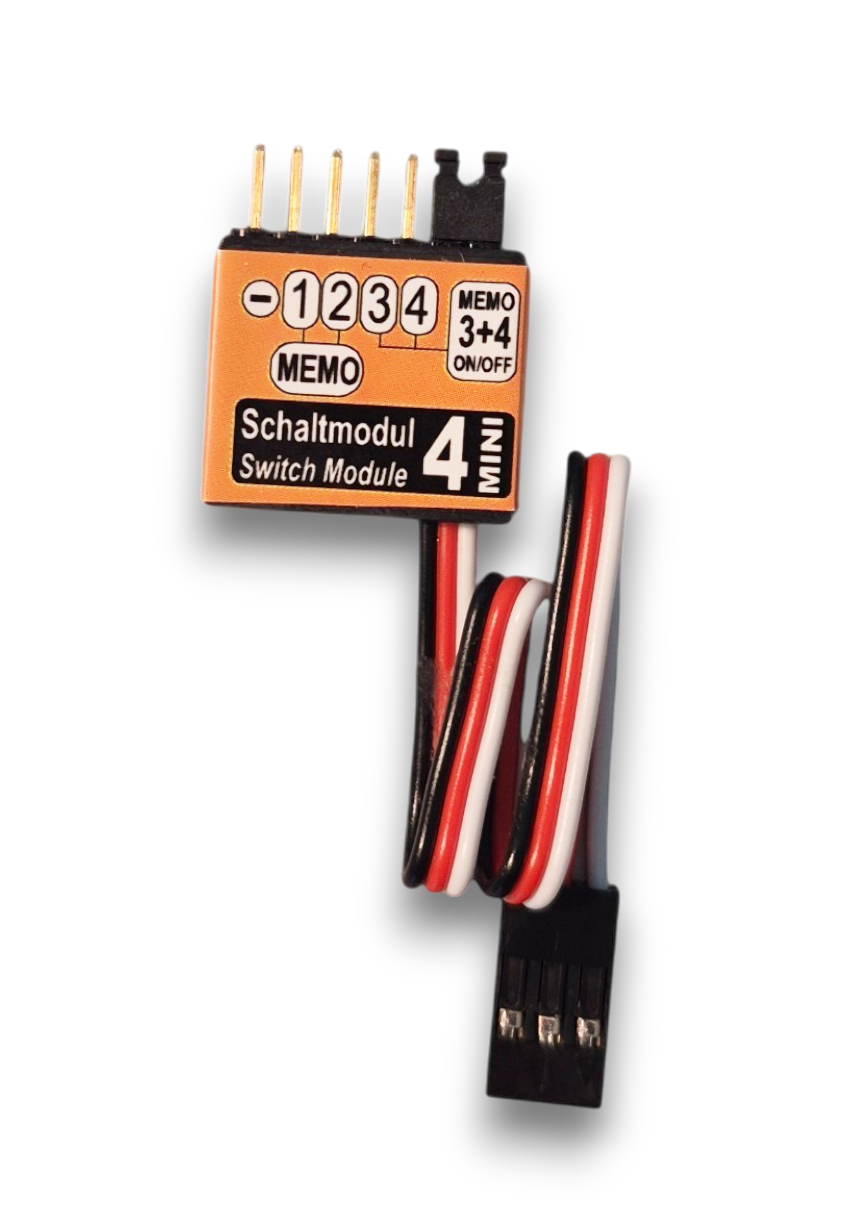

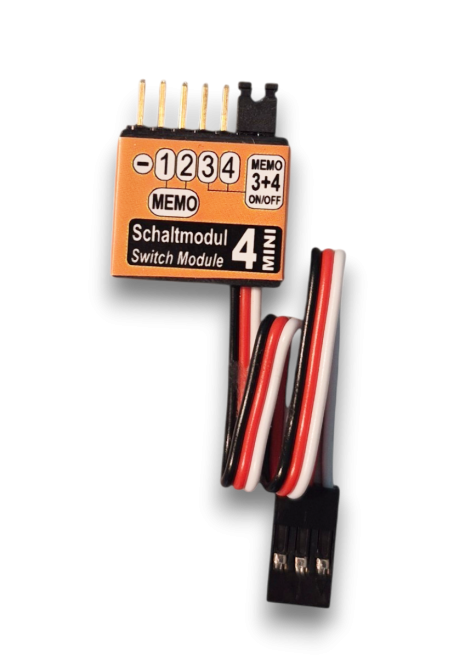

4-Channel Electronic Switch Module MINI

4-Channel Electronic Switch Module MINI

Select Item #: 8431
Only some items on stock - order quickly!

Miniature electronic module for switching 4 different functions
with a load of up to 4 Amps by a single R/C channel!

This is a direct replacment for item 8430. This new version is much smaller and even more powerful!

The module only needs to be plugged into the receiver; the functions are controlled simply by using a joystick or switch on the transmitter.

• Controls 4 functions
• Designed to take loads of up to 4 amps (10 sec.) or 3 amps (continuous)
• Requires a single R/C channel
• Selective memory function for 2 outputs or all 4
• Easy memory selection through jumper
• Automatic signal setup works will all R/C systems
• Approved for 2.4 GHz

Dimensions 5 x 18 x 24 mm
Weight approx. 3.5 g

Made in Germany
