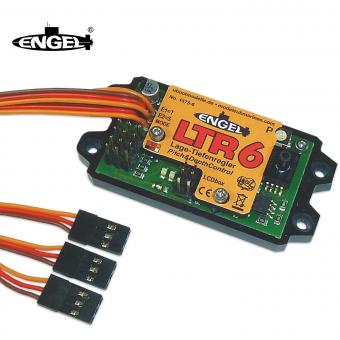

Pitch and Depth Controller LTR6

Zoom
Pitch and Depth Controller LTR6

Pitch and Depth Controller LTR6

Select Item #: 1575-6
Pitch controller with combined depth sensor for ultimate performance
Only some items on stock - order quickly!

New version 6 with loads of innovative features!

Running a sub steadily at periscope depth is really an achievement for any model submariner.
The LTR6 offers an automated system to succeed in this kind of manoeuvre. The LTR6 does not only offer a combination of pitch and depth controller but an interactive system of the two devices in a single unit.

This new version of the LTR will hold submarine models at a depth set by the transmitter via the dive planes.

The LTR6 offers 3 receiver connections. The first is for the dive plane servo channel itself. The second for models with X-rudders. The third receiver input offers an on/off option operated by a 3-position switch on the transmitter; this will also allow for changing operation mode (absolute or relative depth control).

The LTR6 has 4 servo outputs of which 2 are inversed allowing for all servo/rudder combinations possible. Even large subs with sophisitcated X-rudder operated by 4 individual servos can therefore be handled easily.

A brand new feature of this latest version 6.1 is the possibility to change internal setup of the LTR by a so-called LCDbox (item no. 1575-LCD). In addition, the LCDbox will also visualize pressure and other operational data on its LCD screen.

The LTR6 is the state-of-the-art controller: Fully built-up with pressure sensor, inclinometer and microprocessor.

Technical Specifications:
• Type: plug-in-between device, powered by receiver battery, internal sensors and microprocessor
• Dimensions: 65x33x16 mm, milled plastic base
• 4 bores for mounting screws
• Weight: approx. 20 g
• Voltage: 3.9-8.5 V (receiver power)
• Consumption: 0.5 mA (idle)
• Impulses: positive, 0.75-2.25 ms -- works with all R/C systems

Includes:
• LTR6
• Silicone tubing 3.5/1.5x500 mm (for depth controller)
• outboard connector, brass (for depth controller)
• 4 self-tapping, stainless-steel screws
• Comprehensive manual in ENGLISH
