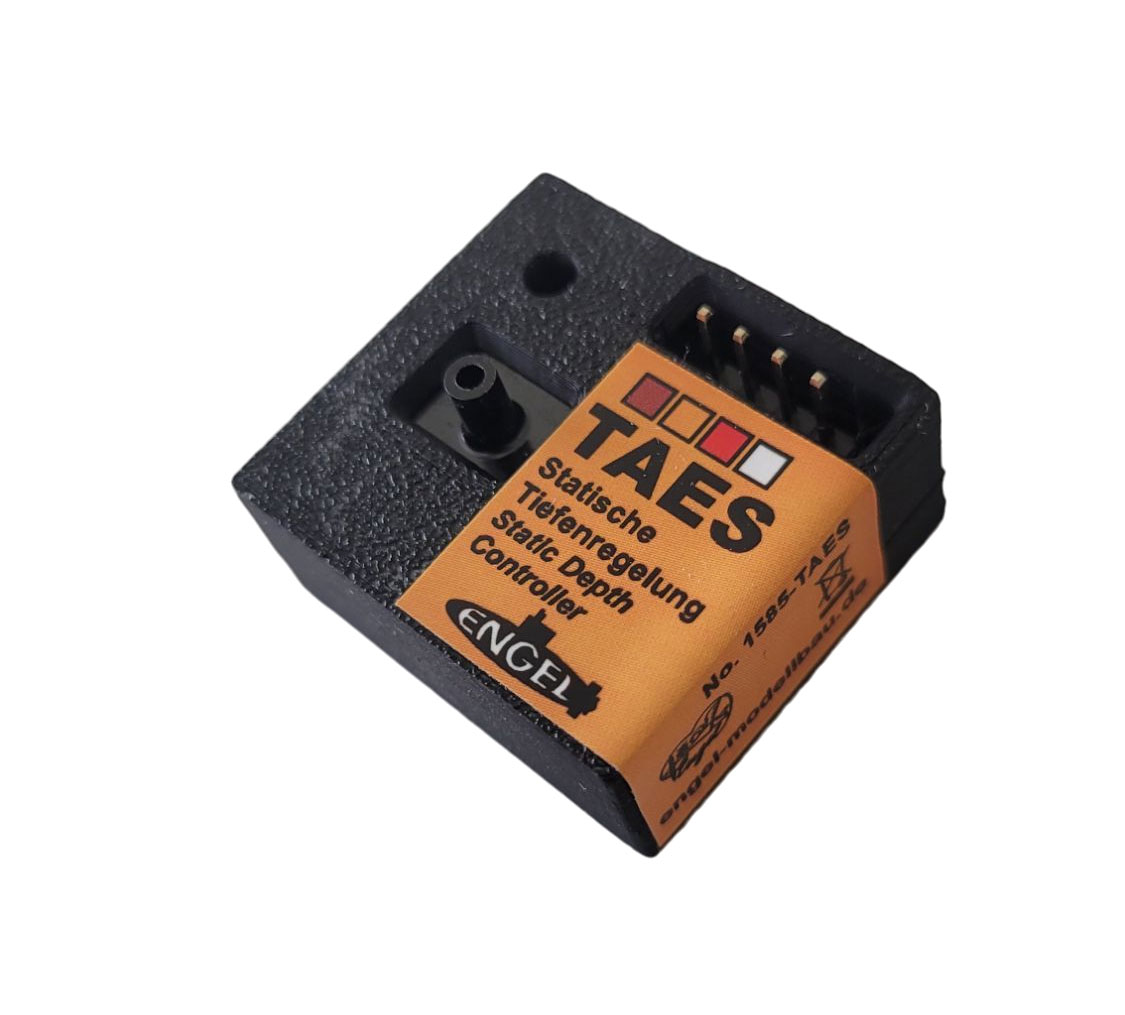

Static Depth Controller TAES for TAE and Tmax
Switch unit TAE can be upgraded with a so-called Static Depth Controller. This electronic unit is equipped with a pressure sensor supporting the trim of the submerged, static (not moving) model.
The Static Depth Controller TAES measures the pressure differentials during submerging and resurfacing which are then equalized by water being sucked in and pressed out of the Piston Tanks.
With this system no further manual trimming necessary, thereby allowing the model to be held automatically at a desired depth. However, an almost exact basic trim of the model is essential for this system to work accordingly.

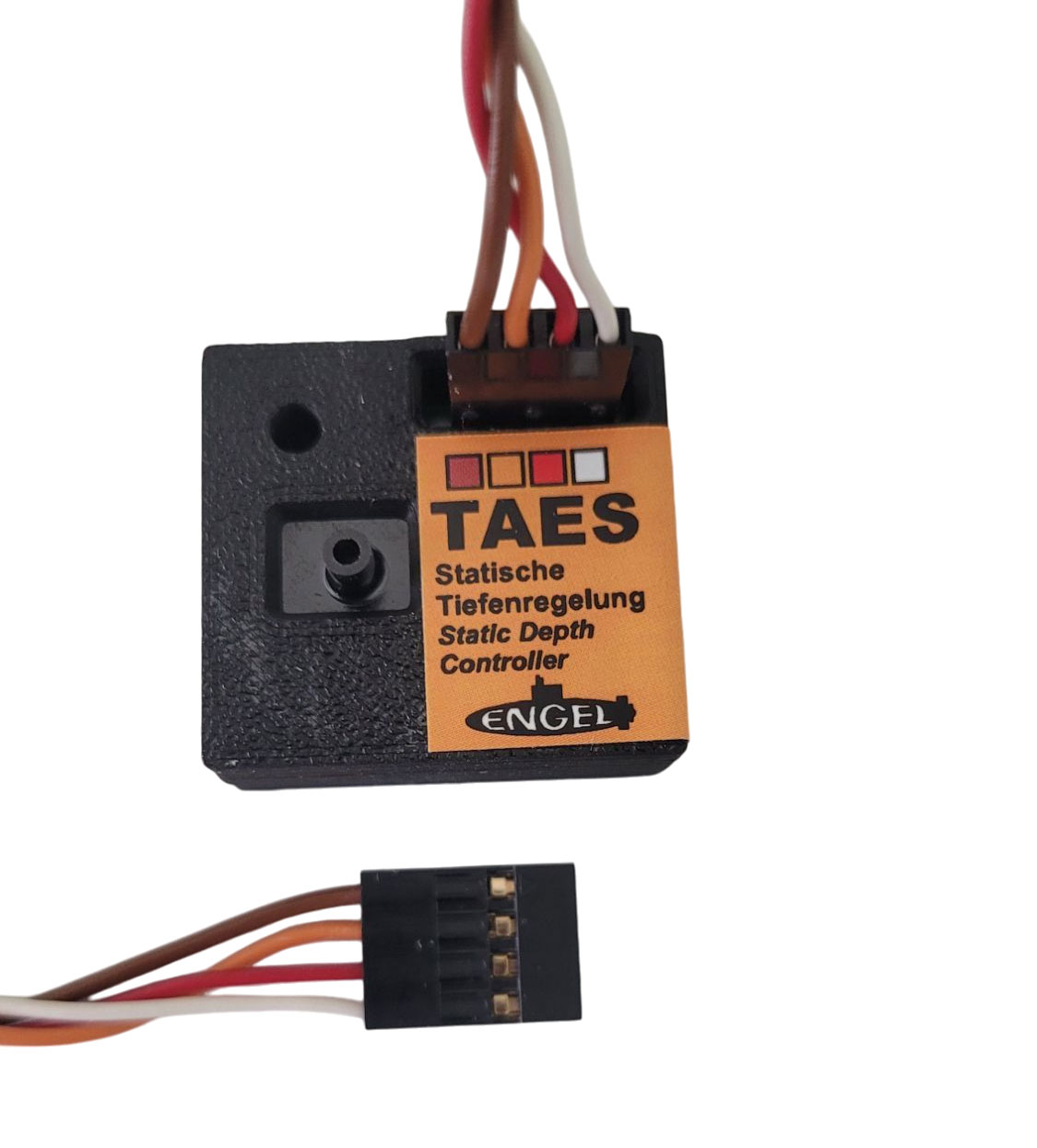

This upgrade kit includes the ready-soldered control unit TAES with pressure sensor. The unit is easy to install as the connector cable must only be plugged into the port of the TAE switch unit.
Includes: Static Depth Controller, tubing, mounting parts as well as comprehensive instructions for connecting and controlling the TAES unit (TAE in combination with TAES = TAES) .
IMPORTANT: for upgrading Tmax versions v1.2 (or lower) with TAES a PIC upgrade to version v2.1 is necessary. The corresponding PIC version of the Tmax is shown on the label next to the relais 1.
If you own a Tmax version lower than v2.1 please order PIC upgrade to v2.1 (item no. 5207-021)
Suitable for switch units TAE, TAE2 and TAE3 as well as Tmax2.
