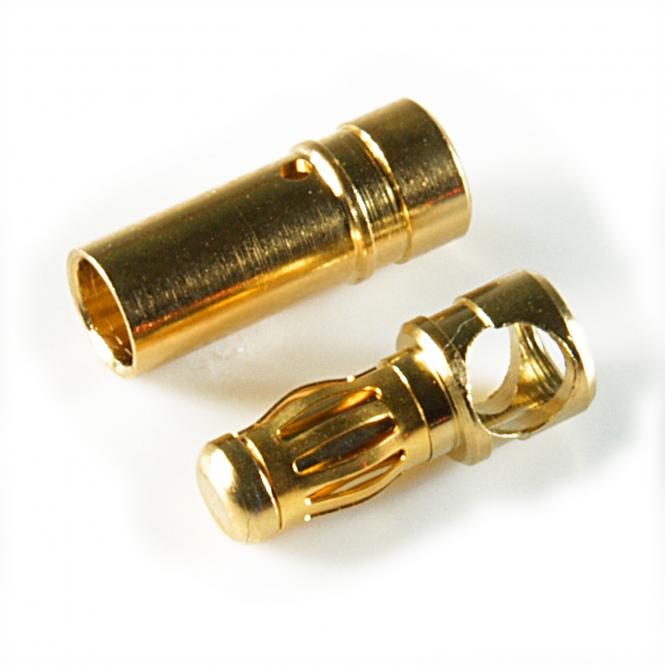

Gold Connector CT-3.5mm 35A
Gold plated 0.15µ contact connectors.
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.18 mOhm
Ampacity 35 A (continuous), 60 A (2 min.), 75 A (impulse)
Length (casing) 16.4 mm
Diameter 4.8 mm
Total weight 2 g
Wire cross section max. 4.0 sqmm (AWG 11)
Set includes 1 male + 1 female connector
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.18 mOhm
Ampacity 35 A (continuous), 60 A (2 min.), 75 A (impulse)
Length (casing) 16.4 mm
Diameter 4.8 mm
Total weight 2 g
Wire cross section max. 4.0 sqmm (AWG 11)
Set includes 1 male + 1 female connector
