12-channel receiver for RadioMaster TX16S with TBS CRSF MICRO V2 868/915 MHz transmitter module.

This frequency allows diving depths of up to 1.5 m, depending on the water and water quality. This is more than sufficient for submarine models.

This receiver offers 12 channels and a feedback output (telemetry) for the main battery voltage.
In addition, the reception quality (1RSS) is displayed in dB on the main screen of the transmitter.

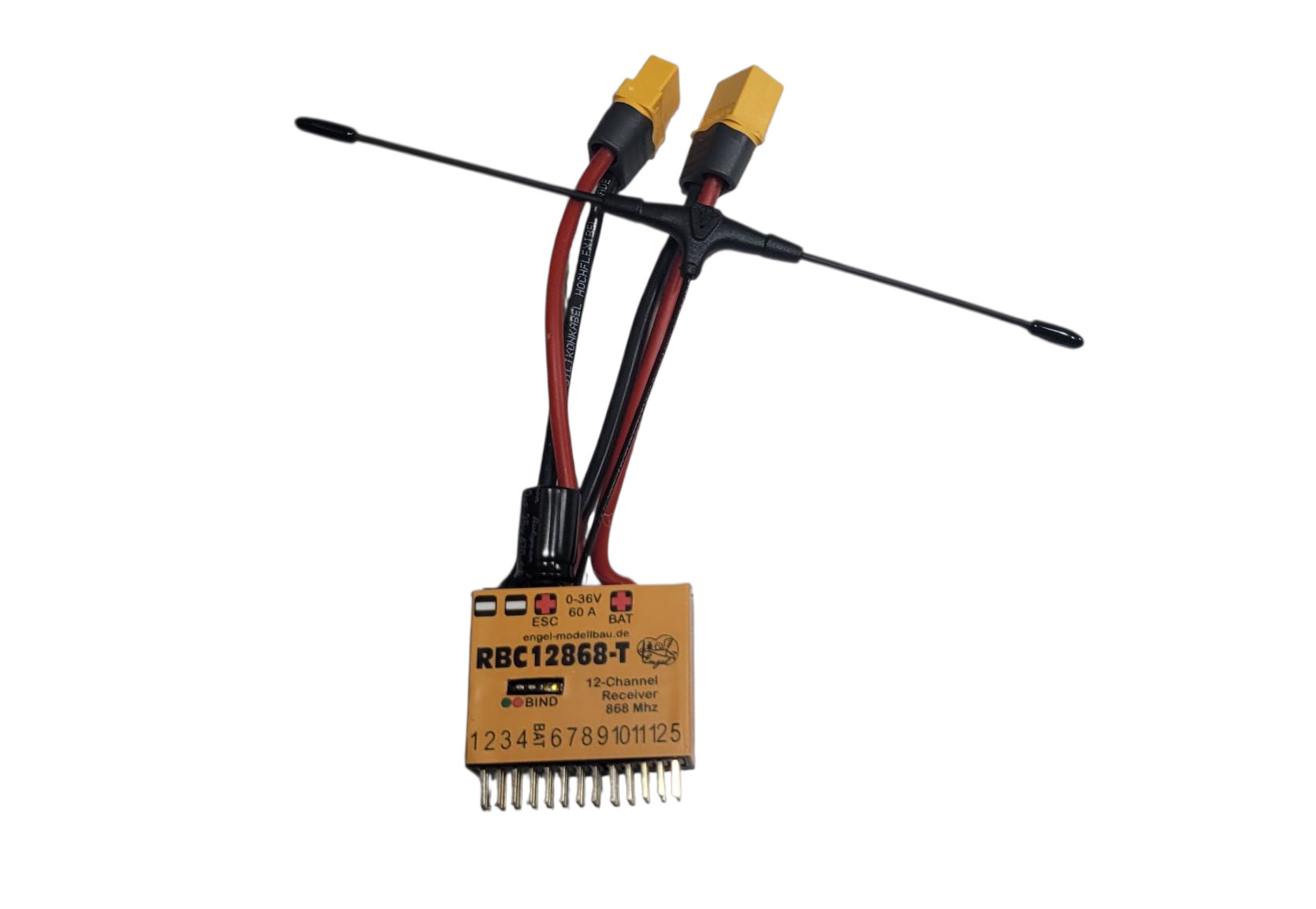

• If you have purchased the transmitter INCLUDING the RBC12868-T receiver from us, transmitter and receiver are already factory-bound and ready for use with the corresponding submarine model.The consumers (such as the switching unit, speed controller) are connected to the receiver via the XT60 connector marked BAT+.
• The model's main battery is connected directly to the receiver using the XT60 plug marked BAT+. The consumers (such as the switch unit and speed controller) are connected to the XT60 socket marked ESC+. An XT60 plug is used for this purpose.

The receiver comes with a flexible yet extremely stable T-antenna (immortable). This offers the best reception quality. In addition, a thinner, much smaller wire antenna is included.
In our tests with the thinner wire antenna, there was no noticeable deterioration in reception quality. However, we prefer the pre-installed version. The antenna can be replaced.

Technical data
• Frequency band: 868/915 MHz
• Channels: 12
• Current consumption: 10 mA
• Dimensions: 36 x 29 x 14 mm
• Weight: approx. 40 g
• Input voltage (telemetry): 0-36 V / 60 A
• Connections (telemetry): XT60 plug/socket

Includes
• RBC12868-T receiver
• T-antenna (installed)
• Wire antenna

TX16S transmitter and transmitter module are not included!
