Receiver Schulze delta-840w 40-41MHz with horizontal servo socket pins 82842

Zoom

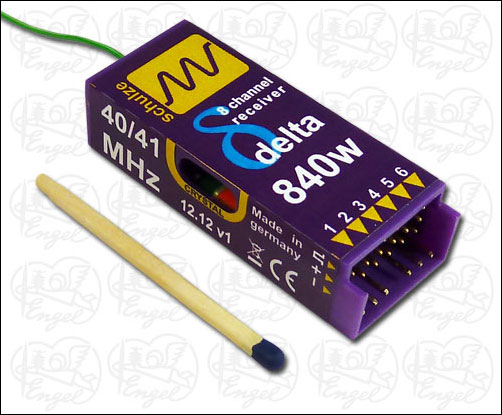

Receiver Schulze delta-840w 40-41MHz with horizontal servo socket pins 82842

Item #: 9459

89,00 € *

This item is not on stock and has to be re-ordered.

Product images

Description

delta receiver series

The alpha receiver series has become well known in the past years especially because of its high range and its excellent interference suppression.

The delta receiver series continues this well-tried concept and inherits all features for more reception-safety (apdr, asc, atss, dsp, s&h - see alpha series below) inclusively the LED of the error counter and the small size.

The delta series only saves at the extensive configuration options which are normally only used by a fractions of the users. Together with the limitation on few types a particularly attractive price could be realized.

Therefore the delta receivers became member of our "high value" series.

All delta receivers are equipped with horizontal servo connectors. The crystals are accessories and not included in the price.

Technical Specifications:
• 8 channels
• Frequency 40-41 MHz
• Single conversion
• Selection (narrow band) better 10 kHz
• Digital-Squelch
• Leightweight hard plastic case 14 g (w/o crystal)
• Dimensions 53 x 21.5 x 13.5 mm
• Long or short (minimum is 40 cm) aerial depending on preferred purpose
• Voltage range: 4-5 cells = 4.8 - 6 V nominal voltage = 3.6 - 9 V min/max.
• LED current: 1mA
