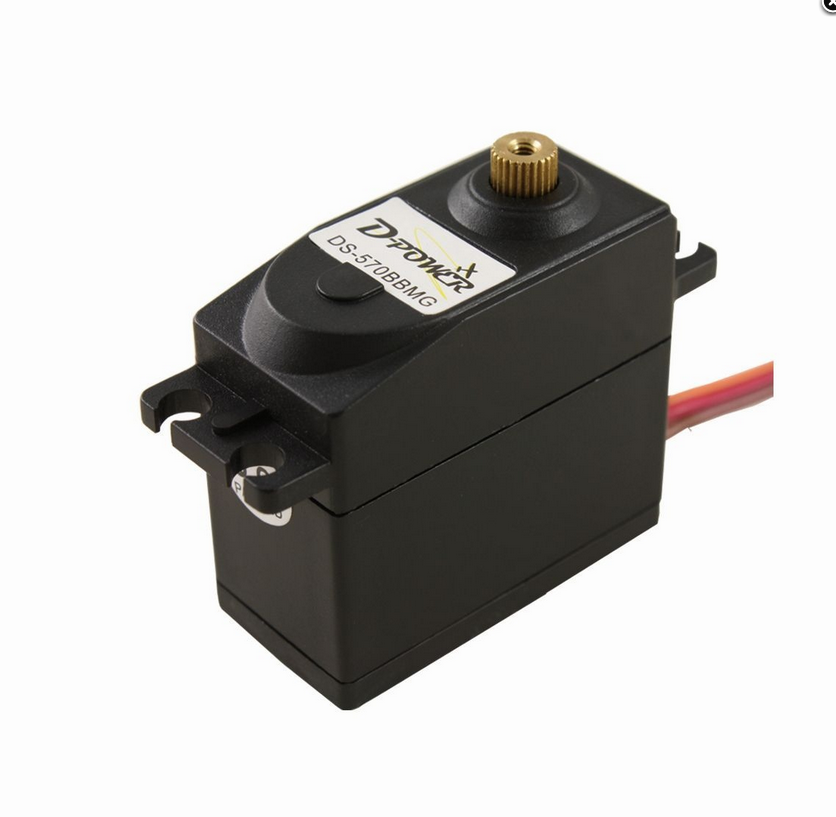

Digital Servo DS-570MG BB

Product 3 of 3

High quality servo with gears all in metal, from the motor pinion to the output gear. Ideal for heavy-duty operation of dive planes via a Pitch Controller, whose control surfaces tend to destroy the teeth of standard plastic gears. Also a good choice for trucks and other multi-function boats.

• Ball bearing
• Metal gears

Technical Data:
Dimensions: 40 x 20 x 38.5 mm
Operating voltage: 4.8 - 6 V
At nominal voltage 4.8 V: Torque 65 Ncm  Transit speed 0.14 sec./60°
At nominal voltage 6.0 V: Torque 70 Ncm   Transit speed 0.13 sec./60°
Weight: 58 g

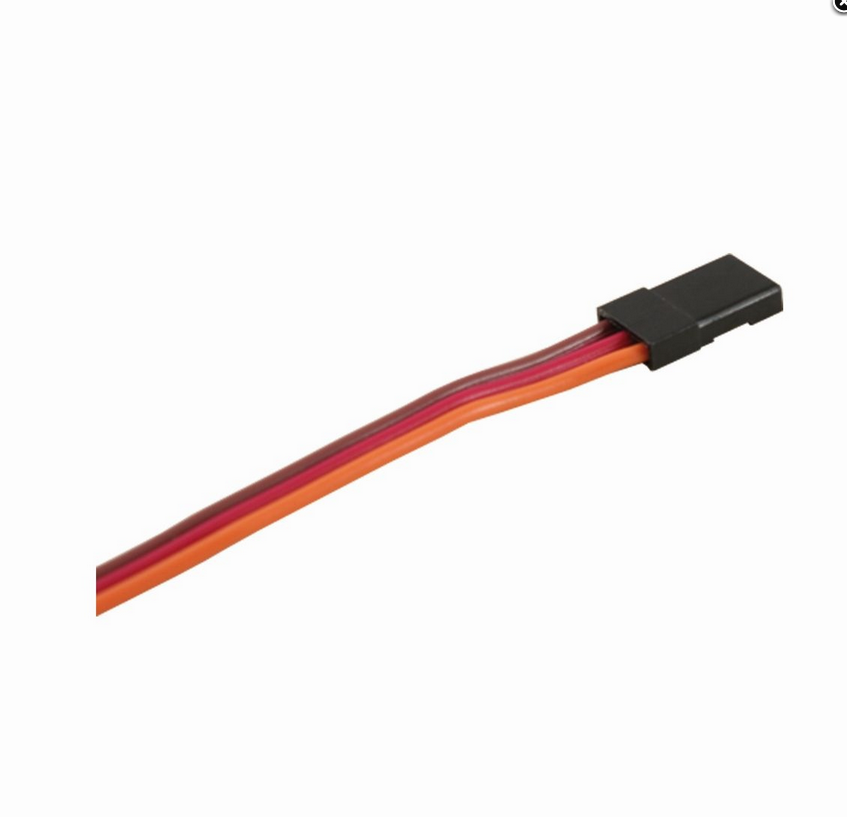

Connector: JR

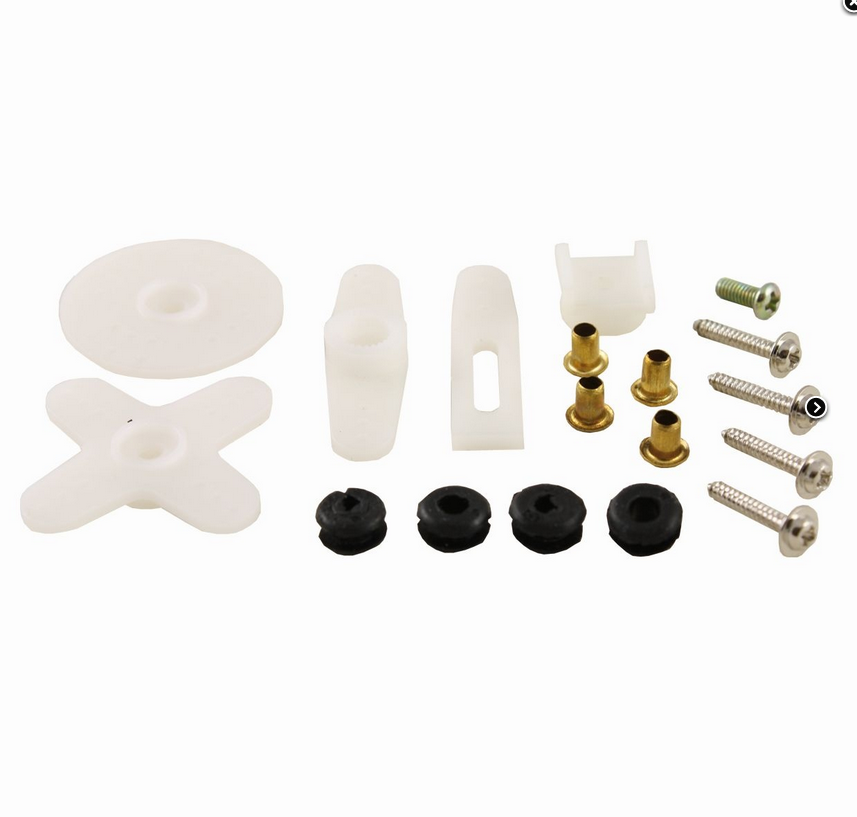

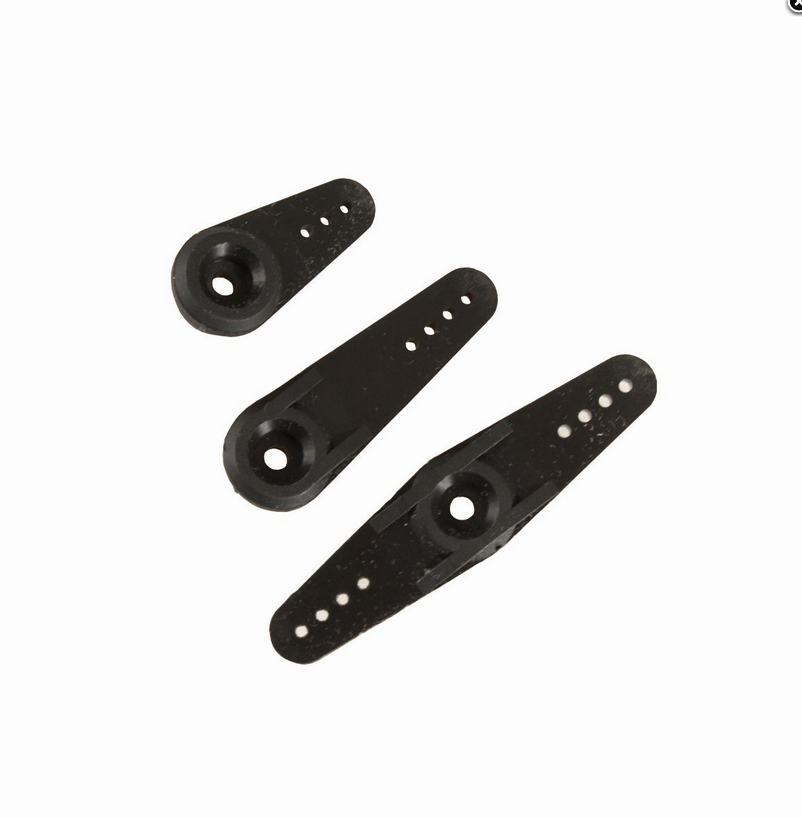

Includes servo arms, screws and rubber bearings.

* incl. tax, plus shipping
