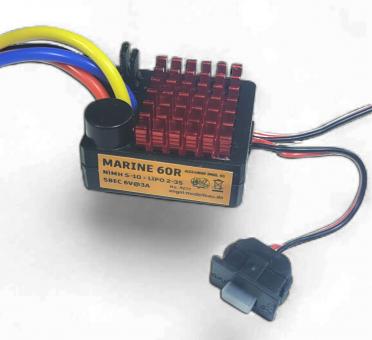

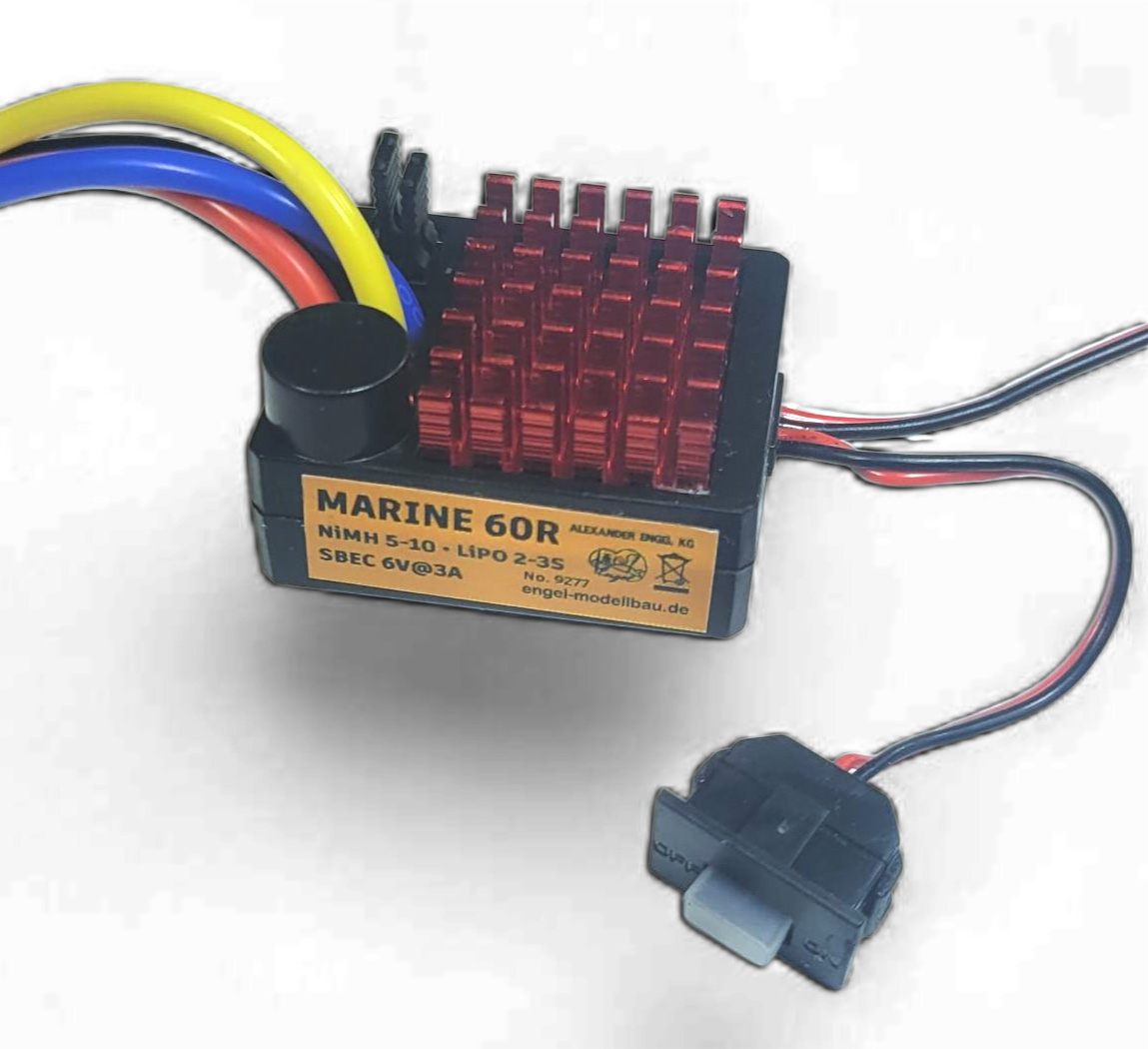

Speed controller for brushed motors type 540, 550, 560.
Quite robust construction, with adjustment via jumpers.
3 Control Modes (set by jumper)
• forward - push to brake - reverse
• forward - brake - reverse
• forward - center trigger to brake - reverse
2 battery modes (set by jumper)
• LiPo
• NiMH
Technical data
Operating voltage 2-3S LiPO
5-9 cells NiMH
Continuous current 60 A
Short-term current 240 A for 3 seconds
Dimensions approx. 38 x 32 x 21 mm
Weight approx. 40 g
