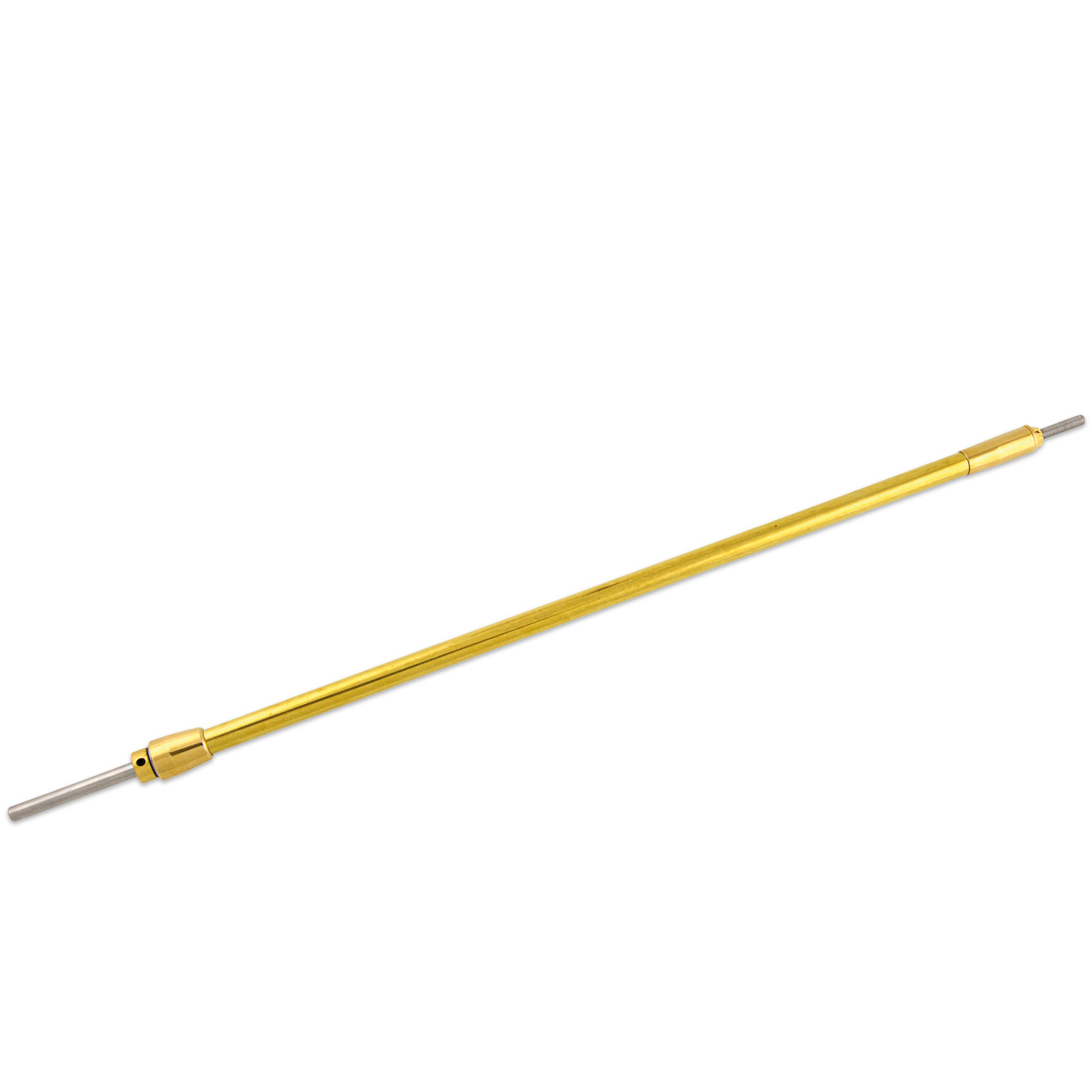

Drive Shaft Unit SX M5x450mm

Product 18 of 18
This Drive Shaft Unit is recommended for electric motors and glow engines with very high torque and/or RPM.

The shaft is made of stainless steel. The shaft tube is made of brass and is equipped with a ball bearing on the inboard and a bronze bearing on the outboard side.
The bronze bearing is sealed with a G-Ring.

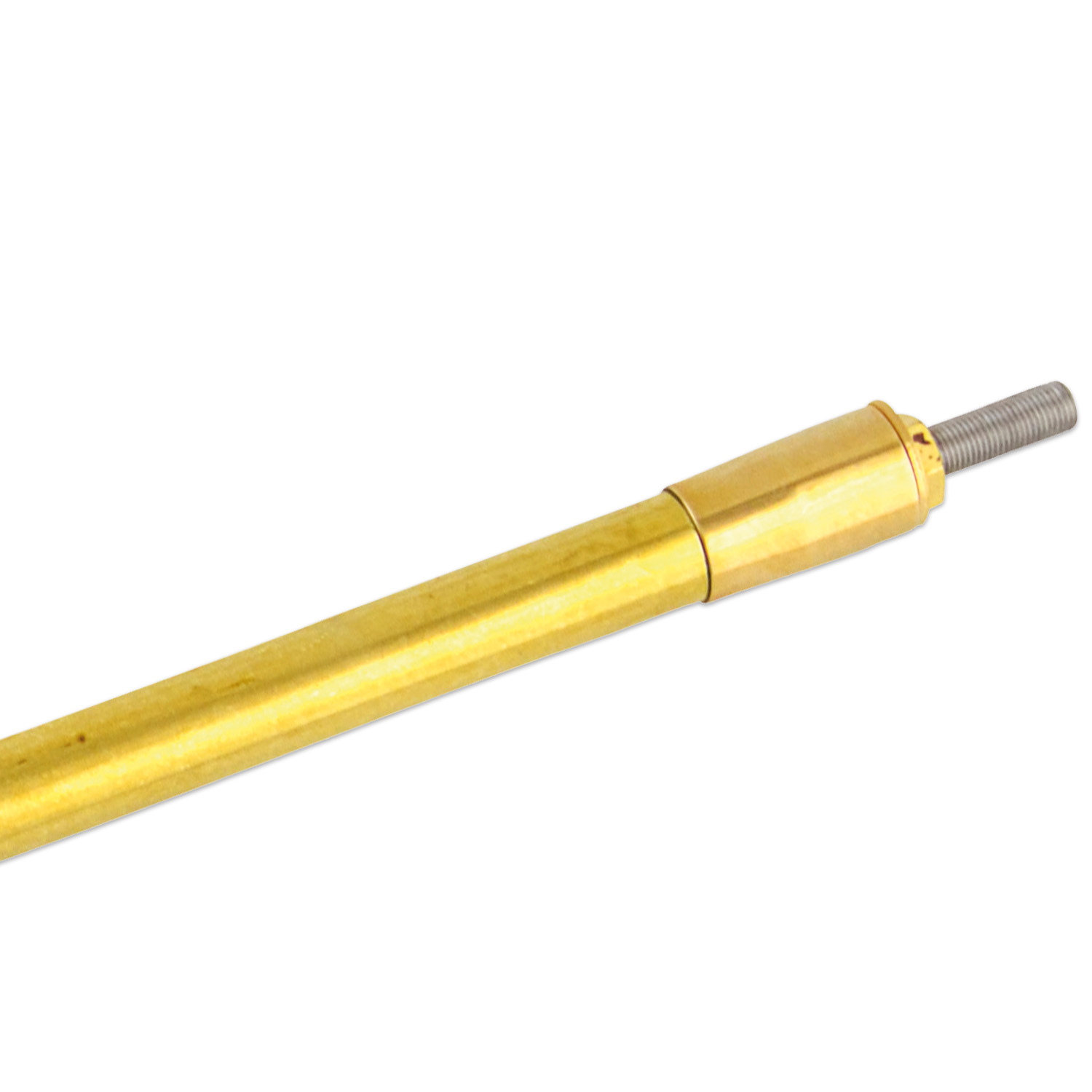

The inboard end tube piece (holding the ball bearing) is not fitted, yet. Therefore it is quite simple to cut the tube and the shaft to required length. Afterwards the end tube piece is fastened to the tube with a grub screw.

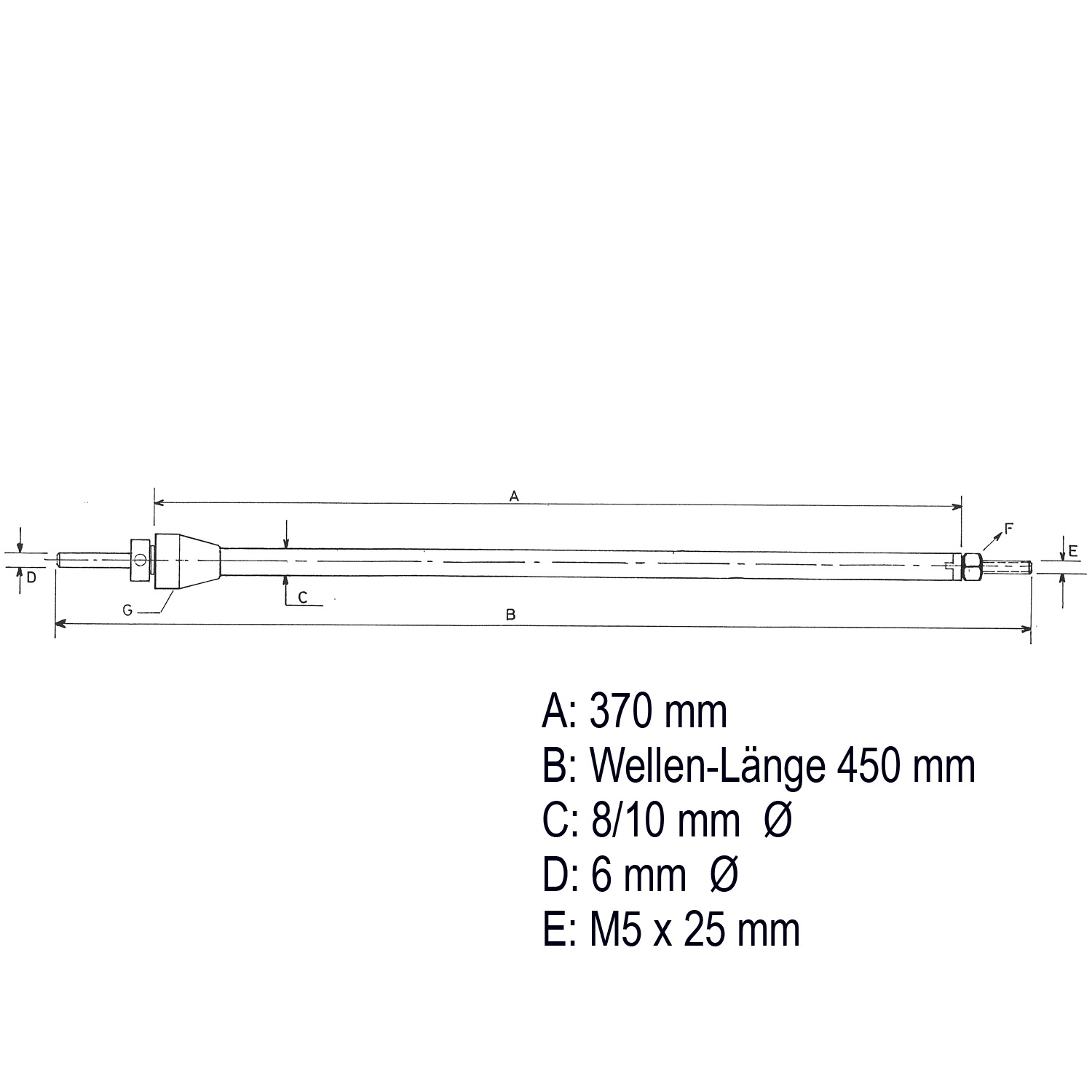

Comes with detailled instructions and drawing.

Max. 16,000 RPM
Tube diameter 8/10 mm
Tube length 370 mm

Shaft dimensions:
Length 450 mm
Diameter 6 mm
Thread M5
Length of Thread 25 mm
