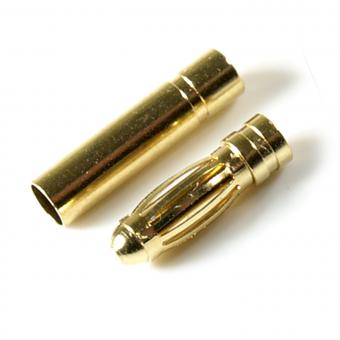

Gold Connector G-3mm 30A
Product 1 of 2
Next product
Gold plated 0.15µ contact connectors.
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.18 mOhm
Ampacity 30 A (continuous), 50 A (2 min.), 65 A (impulse)
Length plug 12.8 mm, socket 14 mm
Diameter socket outer 3.5 mm
Total weight 1 g
Wire cross section max. 2.5 sqmm (AWG 13)
Set includes 1 male + 1 female connector
Male connector with spring type lamellae for optimal contact safety.
Contact resistance 0.18 mOhm
Ampacity 30 A (continuous), 50 A (2 min.), 65 A (impulse)
Length plug 12.8 mm, socket 14 mm
Diameter socket outer 3.5 mm
Total weight 1 g
Wire cross section max. 2.5 sqmm (AWG 13)
Set includes 1 male + 1 female connector
