RadioMaster TX16S with TBS 868 MHz

Product 1 of 4
Zoom

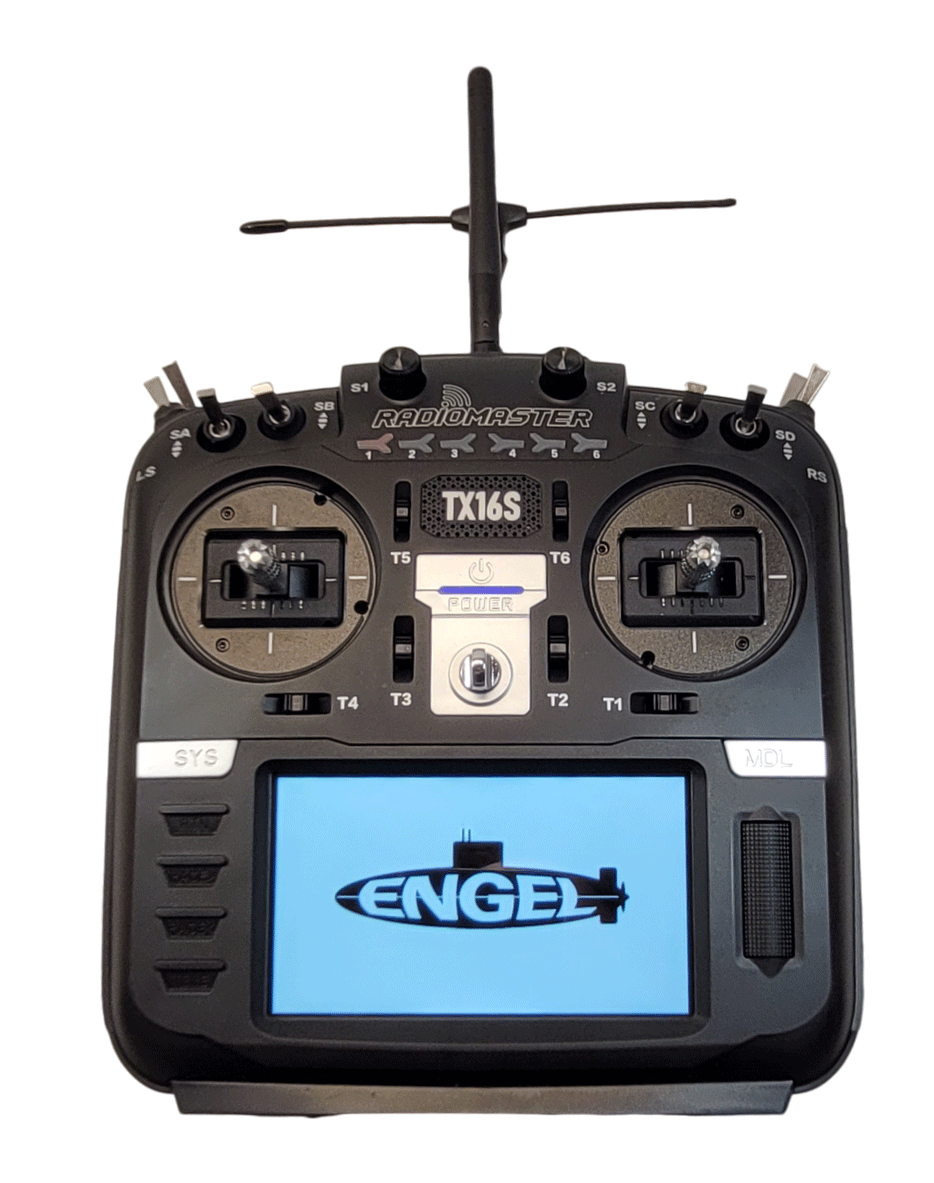

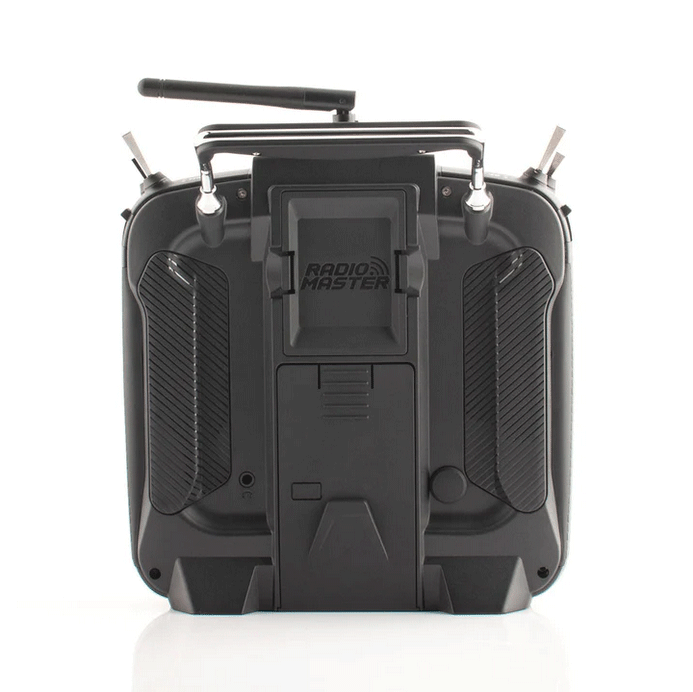

RadioMaster TX16S with TBS 868 MHz

RadioMaster TX16S with TBS 868 MHz

Select Item #: 8512
Only some items on stock - order quickly! Delivery time: 5 - 8 days

RadioMaster TX16S transmitter with TBS CRSF MICRO V2 868 MHz transmitter module.
The version supplied by us comes with model memory for all ENGEL U-BOAT MODELS and is designed for the frequency 868 MHz.

This frequency allows diving depths of up to 1.5 m, depending on the water and water quality. This is more than sufficient for submarine models.

Version 4-in-1: The internal transmitter module can of course be activated at 2.4 GHz and can therefore be used without restriction for aircraft, ship, car and all other surface models.
This means that RC models of all kinds can also be controlled with this system. The internal 2.4 GHz is deactivated by us. However, this frequency or the 2.4 GHz module can be activated at any time and thus used for all other model types.

The TX16S is a real enrichment for our hobby, i.e. RC submarines. The 4-1 version supplied by us also allows the connection of (almost) all common RC systems.

The RadioMaster TX16S Mark II remote control is regarded as the optimum in RC technology.

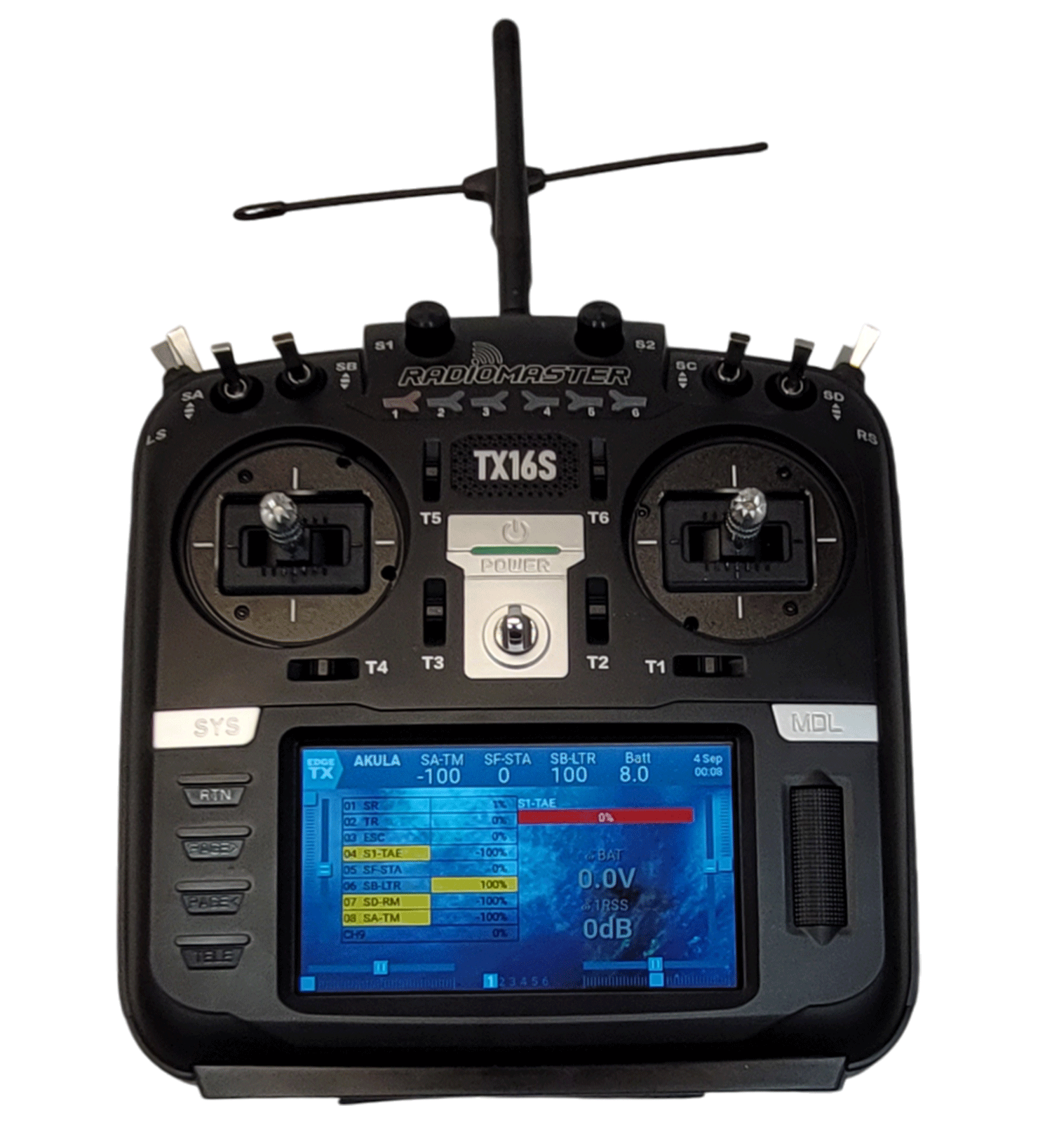

This remote control system features Hall Gimbals V4.0, an internal 4-in-1 multiprotocol module, OpenTX and EdgeTX compatibility (EdgeTx Centurion installed) and a 2.4 GHz radio frequency with 16 channels.The updated design includes an easily removable battery cover, raised and flat grips for better ergonomics and improved S1/S2 buttons with center detent.The 4.3-inch color IPS display allows for easy programming with touch-panel precision, and the all-new 3.5mm audio headphone jack and built-in dual speakers provide great audio options for captains and pilots.

Technical Specifications

  • Display: 4.3-inch TFT color touch display with a resolution of 480 * 272
  • Upgrade method: Supports USB-C online / SD card offline upgrade
  • Antenna gain: 2db (transmit power adjustable)
  • Transmitting module: (CC2500 CYRF6936 A7105 NRF2401)
  • Internal 4-in-1 multiprotocol module
  • Transmit power: (protocol dependent)
  • Internal 4-in-1 multiprotocol module
  • Channels: Up to 16 channels (receiver dependent)

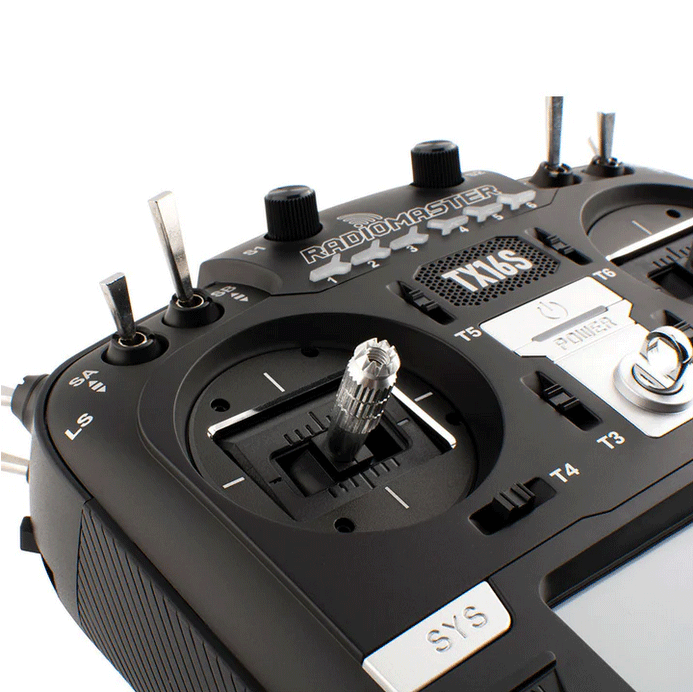

  • Gimbal: V4.0 Hall sensor with aluminum cladding
  • Module firmware: Multiprotocol module (41N1)
  • transmission frequency: 2.400GHz-2.480GHz
  • Remote control distance: > 2km @ 22dbm
  • Module bay: JR compatible module bay
  • Weight: 750g (without battery)
  • Operating voltage: 6.6-8.4V DC
  • Radio firmware: EdgeTX
  • Operating current: 400mA
  • Size: 287x129x184mm

Includes

  • RadioMaster TX16S MKII 2.4 GHz Hall Gimbals V4.0 multiprotocol 4in1 remote control black
  • 1x 18650 BatteryTray (battery not included)
  • 1x Raised Grips (Set of 2)
  • 1x Flat grips (set of 2)
  • 1x TX16S keychain
  • 1x Display protection foil
  • 1x USB-C cable
  • TBS transmitter module 868 MHz preconfigured for ENGEL U-BOAT MODELS


This R/C system can be operated in all EU countries.
