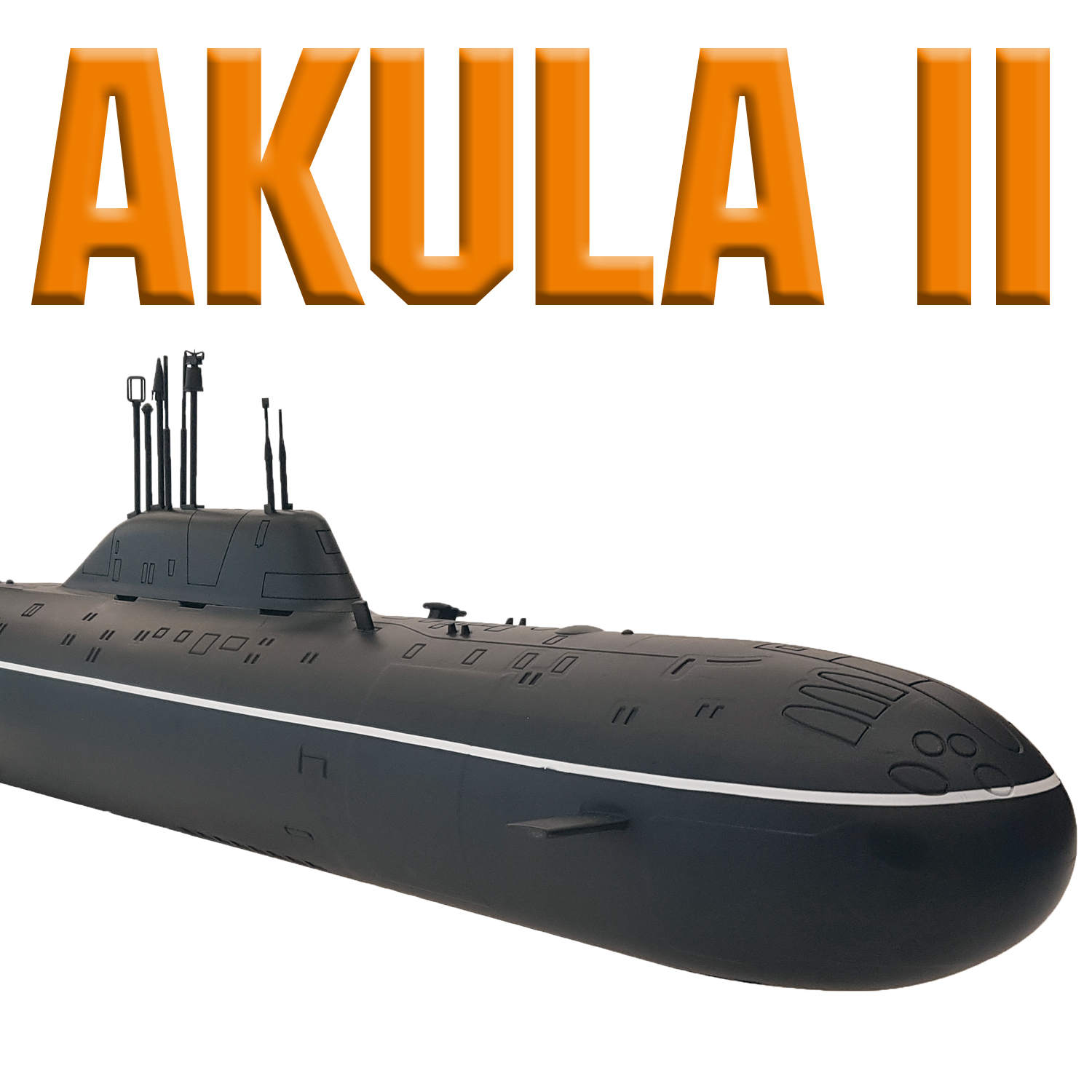

AKULA II Model Submarine

Zoom

AKULA II Model Submarine

Item #: 2000

948,00 € *

This item is not on stock and has to be re-ordered. Available on 2026-04-15

Product images

Description
Tech. Data

R/C model submarine with radial parting and bayonet lock ring, scale 1/125

This new model submarine developed by ENGEL offers besides radial parting with bayonet lock ring and Tech Rack© very compact dimensions and easy handling. Hull, sail and all other attaching parts are highly detailed. The Tech Rack© slides into the front part of the hull offering easy access to most of the boat’s internal components.

Kit includes

• Ready-made hull unit made in 2 parts of sturdy ABS with integrated lock ring and bulk head, including sail and control planes made of resin
• Tech Rack© made of CNC-machined, interlocking parts and brass bars
• Piston Tank type HA750-12V with Hall sensor and Compact Tank Switch CTS2 and Pressure Switch
• Brushless main drive motor 12V with aluminium mount, stainless steel shaft, brass coupler and shaft sealing ring
• Scale 7-blade scimitar propeller made of brass

• All necessary linkages and small parts made of brass and stainless steel

• Screws, nuts and bolts made of stainless steel

• Pre-shaped ballast weights (rolled lead)
• Letterings and water level markings
• Manual in English

Technical Specifications
• Scale 1:125
• Length 870 mm
• Displacement approx. 5300 g, submerged approx. 6000 g
• R/C 4 channel

Further items required to complete this model
• Wire and Connector Set, item no. 2000-99
• Battery Pack High-Power NiMH 12V/3500mAh, item no. 5557
• Boat Stand, item no. 2000-Z
• Pitch Controller SPC2, item no. 1574
• Reverse Drive Detection (no BEC), item no. 8454
• Brushless electronic speed control, item no. 3751
• Servo DS-238 MG BB, item no. 9377 (only this servo will fit, requires 2)

scale	1/125
length	870 mm
speed (Vmax)	10 km/h
operating time	2 h
R/C	4 channel
displacement	5.3/6 kg
battery	NiMH 12 V, 3500 mAh
motor	Brushless 300 kV
