Connecting and fitting Hall Effect Sensor and magnets
Position of the piston within each tank is detected by a Hall effect sensor pre-fitted on a separate board and connected to TAE3 by a three-wire lead. Hall sensor is attached to micro switch S1 with screw supplied.
The Hall effect sensor is actuated by magnets. Four dice shaped magnets are included in this set which are glued (with superglue) to the middle gear wheel.

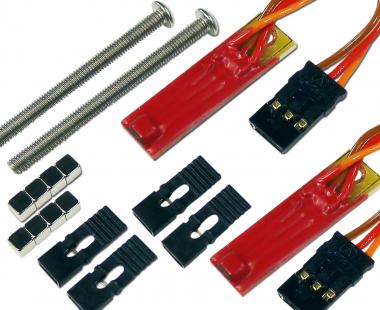

Set includes
• 2 Hall effect sensors, rubber coated, with connection lead attached, wire length approx. 28 cm
• 2 jumpers
• 8 Neodymium cube magnets 3 x 3 mm
• 2 screws M3x40 stainless steel
• 2 washers stainless steel
This set is especially designed to suit Piston Tanks type EA in combination with switch unit TAE3.
